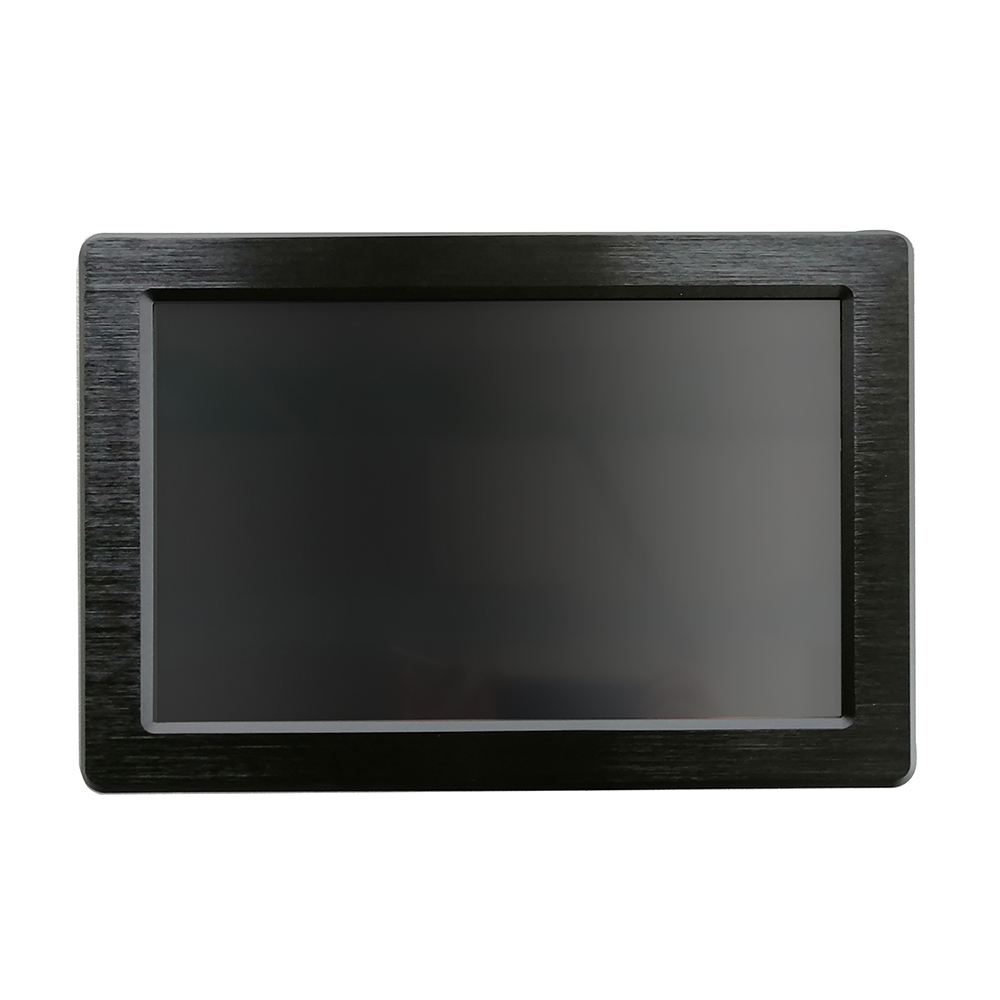

12.1" wide screen industrial monitor，1280x800 pixels, VGA+HDMI
IDM-121W
12.1" wide screen industrial monitor，1280x800 pixels, VGA+HDMI
12.1 inch 1280x800 industrial monitor
Country of Origin: China
OEM/ODM accepted
Features
- · 12.1" XGA TFT LCD Panel support 1280x800 pixels
- · 6mm Aluminum bezel panel with optional Touch screen
- · HDMI + VGA signal
- · NEMA4 / IP 65 compliant front panel
- · 12V AC 100-240V wide range external ac adapter
- · Wide 8-30V module for 24V DC input is optional
- · Panel Flush mount with clips kits or standard VESA hole (75mmx75mm, 100x100mm)
Specification
- Model
- IDM-121W：
12.1" wide screen industrial monitor
- LCD Panel
- Display Type：
12.1" wide LCD
- Resolution：
1280 x 800
- Max.color：
16.7M
- Luminance：
400 cd/m2
- View Angle：
160°(H) , 140°(V)
- Contrast Ratio：
800:1
- Response Time：
11 ms
- Backlight Life：
40,000hrs
- System I/O
- VGA：
D-SUB 15Pin Connector (female)
- HDMI：
HDMI Input (female)
- Power Connector：
2-Pin Terminal Block
- Power Supplier
- Input：
100-240VAC,50/60Hz
- Output：
DC 12V@ 5A/ 60W ,external ac adapter
- Available Options
- Touch screen RS232：
D-SUB 9Pin connector (female) & Resistive touch screen
- Touch screen USB：
USB-A type connector (female) & Resistive touch screen
- Input signal：
DVI-D, AV, S-video, BNC
- Display Control：
OSD Button (Optional)
- Speaker：
2 x Speakers(Optional) & Audio input
- Wide DC Power：
Wide Range 8-30v DC input
- Mechanical&Environmental
- Construction：
Heavy duty steel and aluminum front panel
- Mounting：
Panel flush mount with hook clips or standard VESA hole for swing arm
- Dimensions (WxHxD)：
320 x 220 x 45 mm
- Weight：
Net: 4 kg , Gross: 7.5 kg
- Operate temperature：
0°C~ 60°C
- Storage temperature：
-20°C ~ 70°C
- Storage humidity：
5% to 95% non-condensing
- Anti-Vibration：
17HZ-500 HZ 1G PTP
- Anti-Shock：
1G / peak( 11m sec)
Ordering Information
- Model：
Description
- IDM-121W：
12.1" wide screen LCD industrial panel monitor， Resolution 1280 x 800, with VGA, HDMI input
- IDM-121WT：
12.1" wide screen LCD Industrial Panel Monitor， Resolution 1280 x 800, with VGA, HDMI, resistive Touch screen
